Bipolar Capillary Thermostat Mmg: Tmax = 400 ° C / 20a / 250v / L = 220cm Hungary

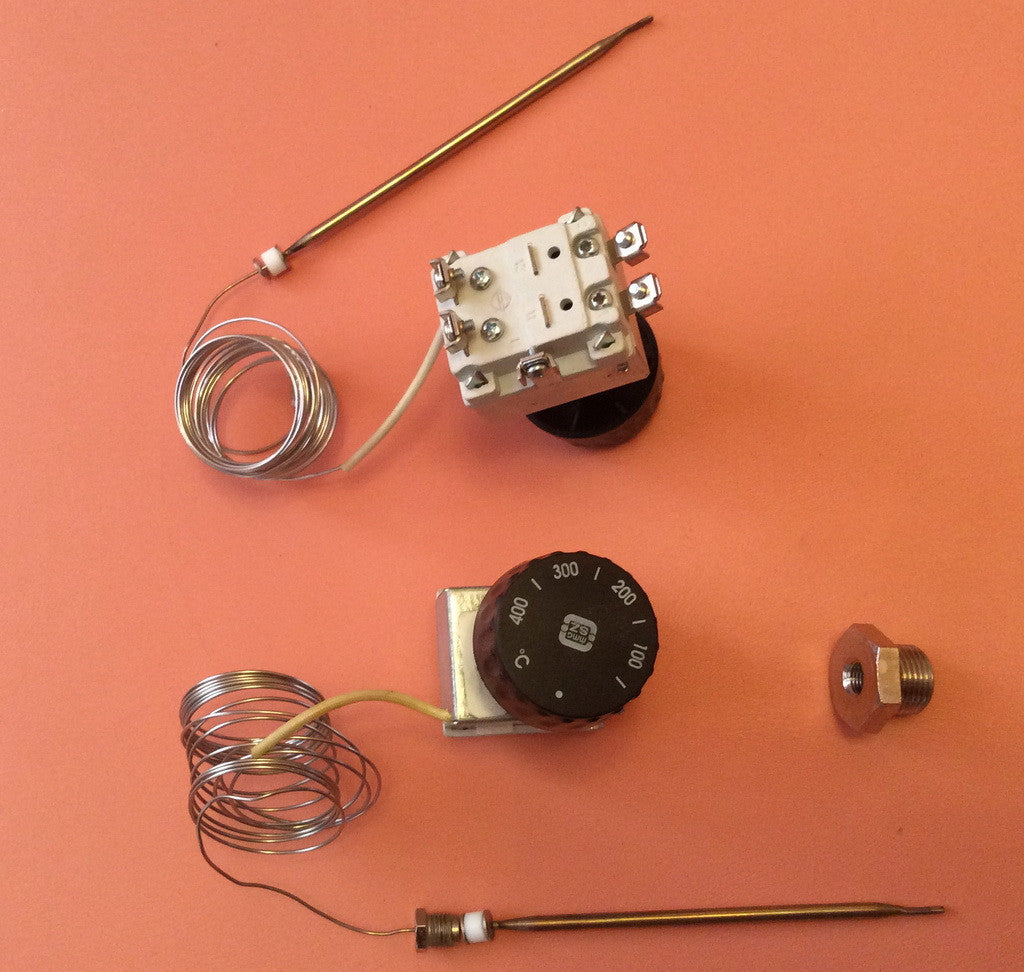

Two-pole capillary thermoregulator MMG (analogue of the T-32M thermoregulator) with a maximum temperature regime Tmax = 400 ° С (operating temperature range 50-400 ° C ) in a metal-ceramic case. A thermostat is used mainly to regulate the air temperature in different conditions, as well as in roasting and ovens. The capillary of the thermostat has a sliding nipple with an external thread 8mm. There is a fitting-adapter (see PHOTO) with an internal thread 8mm and an external thread 18mm , which can be purchased and used if necessary. Such a fitting M18 * 1.5cm is not included in the set with a thermostat, but is sold separately, if necessary, at a price = 35 UAH / piece.

Maximum permissible current of each of the two bands of the thermostat = 20A .

Voltage - 250V .

The total length of the capillary is L = 220cm .

The length of the tip tube is 11cm .

Diameter of the tip tube - 4mm.

The height of the twisting rod is 3cm .

Manufacturer - MMG, Hungary.
