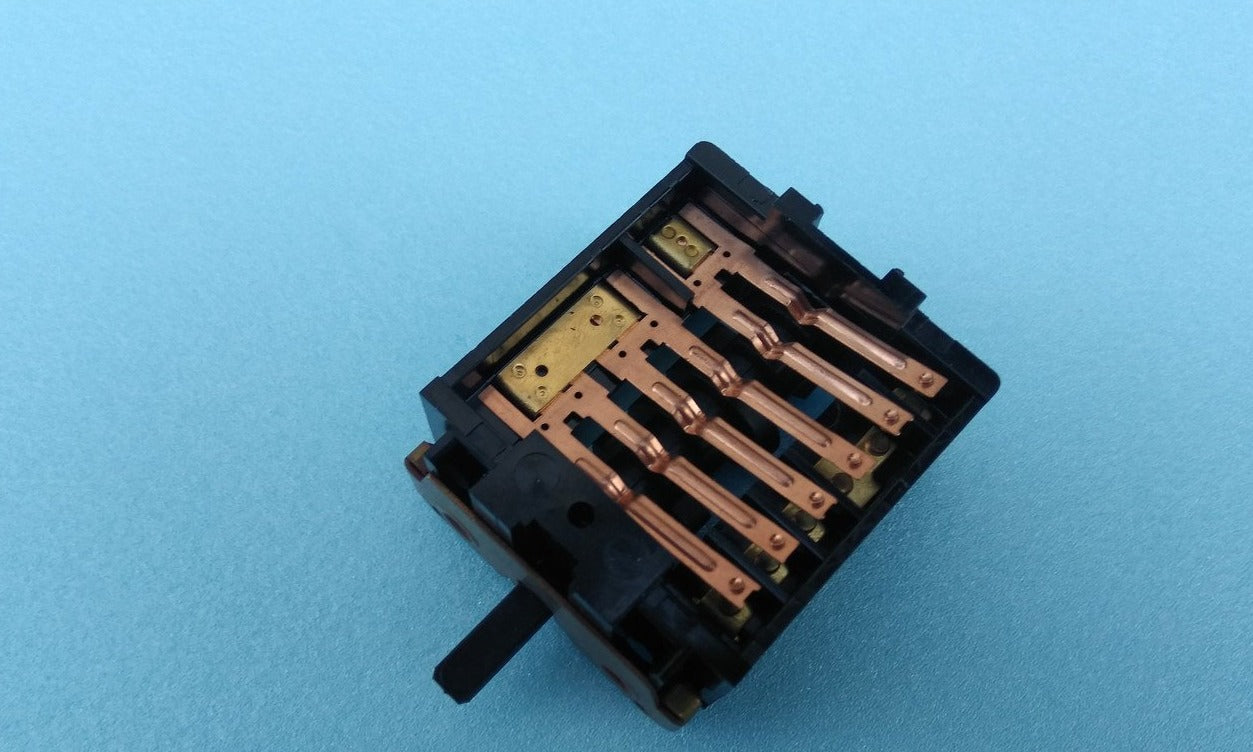

Switch Pm-16-7-03 7-position Production Russia

Changing the modes of the required values ​​for the combination of inclusion - activation

Freeze skryz, it is necessary to manage such a combination;

0 - all terminals are off

1 - clema number 2, 4 and 5 included

2 - clema number 1, 2 і 5 included

3 - included terminals No. 1, 3 and 5

4 - included terminals No. 2, 3 and 5

5 - included terminals No. 1, 2, 3 і5

6 - included terminals No. 1, 2, 3, 4 and 5

strumu power - 16 A

220 V

position - 7 (0.1.2.3.4.5.6.)

virobnistvo - Russia
