Thermostat Three-pole / Three-phase Capillary Mmg: Tmax = 300 ° C / 16a - 400v / L = 220cm Hungary

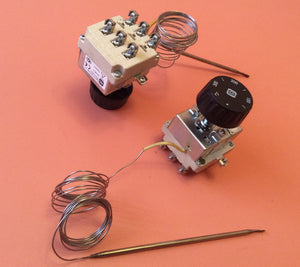

Thermoregulator three-pole / three-phase capillary MMG model 1R31KM with maximum temperature mode Tmax = 300 ° С (operating temperature range 50-300 ° С ) in a metal-ceramic case. A thermostat is used mainly to regulate the air temperature in different conditions, as well as in roasting and ovens.

Maximum permissible current of each of the three strips of the thermostat = 16A at 400V .

The total length of the capillary is L = 220cm .

The length of the tip tube is 15cm .

Diameter of the tip tube - 4mm.

The height of the twisting rod is 3cm .

Manufacturer - MMG, Hungary.
